Components / display

SpecializedChart builder

Specialized raw-value presentations with a persistent labeled value key, keyboard selection, semantic marks, and retained-data refresh failures.

A builder is RenderOnce. Construct and mount it in one expression.

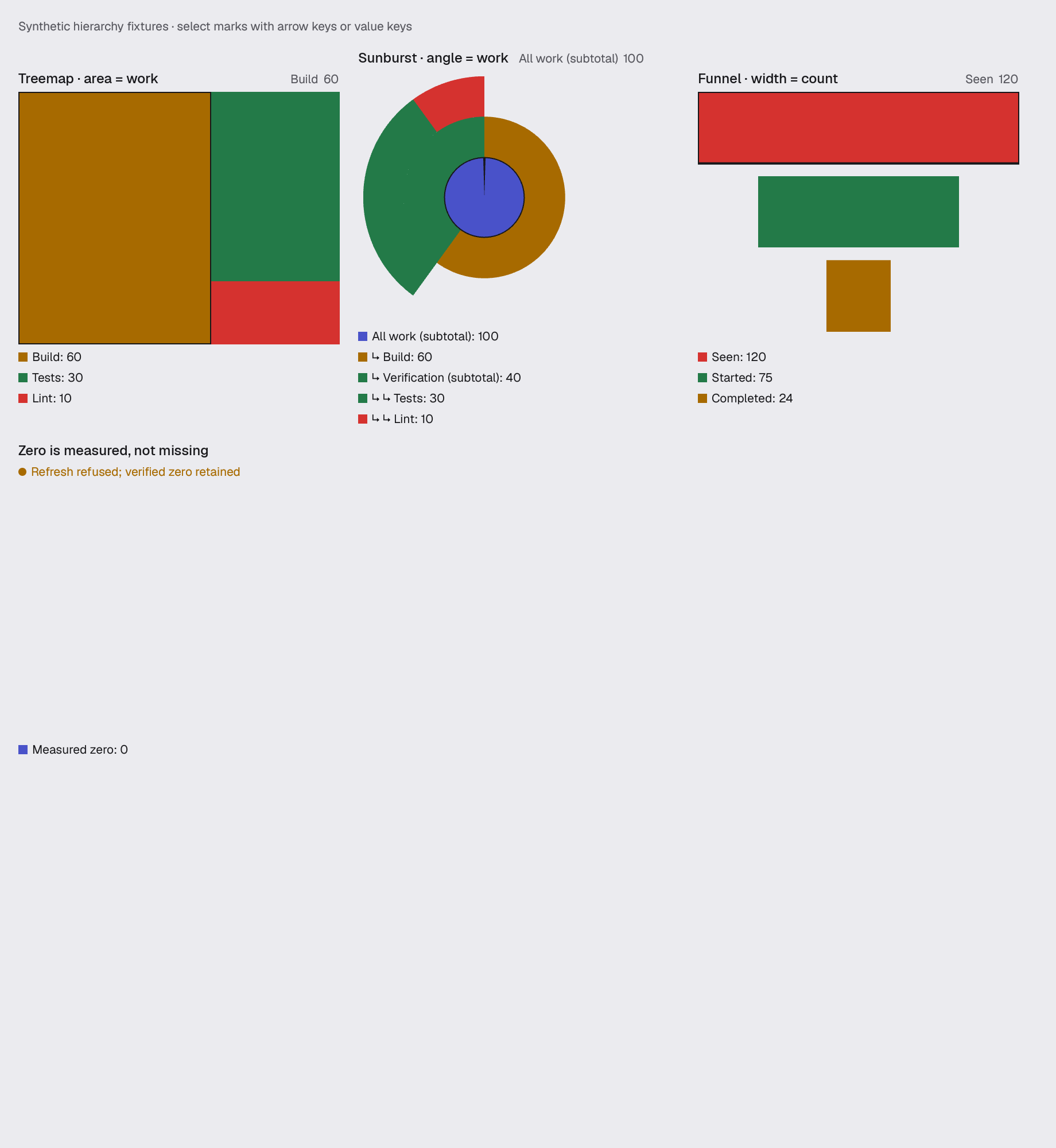

The verified specialized scene in studio-dark

Open specialized in studio-dark

studio-light

use gpui_kit::display::specialized::SpecializedChart;

Reviewed in specialized specialized-distribution specialized-exploration.

Construct

new(ident: impl Into<Ident>, label: impl Into<SharedString>, state: PlotState<SpecializedData>) -> Self

Options

Chain onto the value.

selected(id: Option<SharedString>) -> Self
motion(enabled: bool) -> Self
animate(enabled: bool) -> Self
animation(spec: crate::motion::MotionSpec) -> Self
labels(enabled: bool) -> Self
on_navigate(handler: impl Fn(SharedString, &mut Window, &mut App) + 'static) -> Self
on_hover(handler: impl Fn(Option<SharedString>, &mut Window, &mut App) + 'static) -> Self
current(id: impl Into<SharedString>) -> Self
on_current(handler: impl Fn(SharedString, &mut Window, &mut App) + 'static) -> Self

Example · specialized

fn specialized(_window: &mut Window, cx: &mut App) -> AnyElement {
    let theme = cx.theme().clone();
    let leaf = |id, label, value| HierarchyNode::leaf(WeightedValue::new(id, label, value));
    let root = HierarchyNode::branch(
        "total",
        "All work",
        vec![
            leaf("build", "Build", 60.0),
            HierarchyNode::branch(
                "verify",
                "Verification",
                vec![leaf("tests", "Tests", 30.0), leaf("lint", "Lint", 10.0)],
            ),
        ],
    );
    let fixtures = [
        (
            "treemap",
            "Treemap · area = work",
            SpecializedData::treemap(&root),
        ),
        (
            "sunburst",
            "Sunburst · angle = work",
            SpecializedData::sunburst(&root),
        ),
        (
            "funnel",
            "Funnel · width = count",
            SpecializedData::funnel(vec![
                WeightedValue::new("seen", "Seen", 120.0),
                WeightedValue::new("started", "Started", 75.0),
                WeightedValue::new("done", "Completed", 24.0),
            ]),
        ),
    ];
    stack(&theme)
        .w(px(940.0))
        .child(caption(
            &theme,
            "Synthetic hierarchy fixtures · select marks with arrow keys or value keys",
        ))
        .child(
            div()
                .row()
                .gap_token(&theme, Space::Lg)
                .children(fixtures.into_iter().map(|(id, label, data)| {
                    div().w(px(280.0)).child(
                        SpecializedChart::new(
                            Ident::new("scene.specialized").child(id),
                            label,
                            PlotState::Ready(data.expect("valid hierarchy")),
                        )
                        .on_current(|_, _, _| {}),
                    )
                })),
        )
        .child(
            div().w(px(220.0)).child(SpecializedChart::new(
                "scene.specialized.zero",
                "Zero is measured, not missing",
                PlotState::Stale {
                    data: SpecializedData::funnel(vec![WeightedValue::new(
                        "zero",
                        "Measured zero",
                        0.0,
                    )])
                    .expect("zero"),
                    reason: "Refresh refused; verified zero retained".into(),
                },
            )),
        )
        .into_any_element()
}

Source: crates/gpui-kit/src/display/specialized.rs
