Components / layout

PageLayout builder

A full-height page with fixed header/footer and a bounded body. Insets are residual obscuration in this viewport's logical pixels, not physical screen coordinates. A keyboard that already resized the viewport has zero residual overlap; floating keyboards must not be approximated by edge padding.

A builder is RenderOnce. Construct and mount it in one expression.

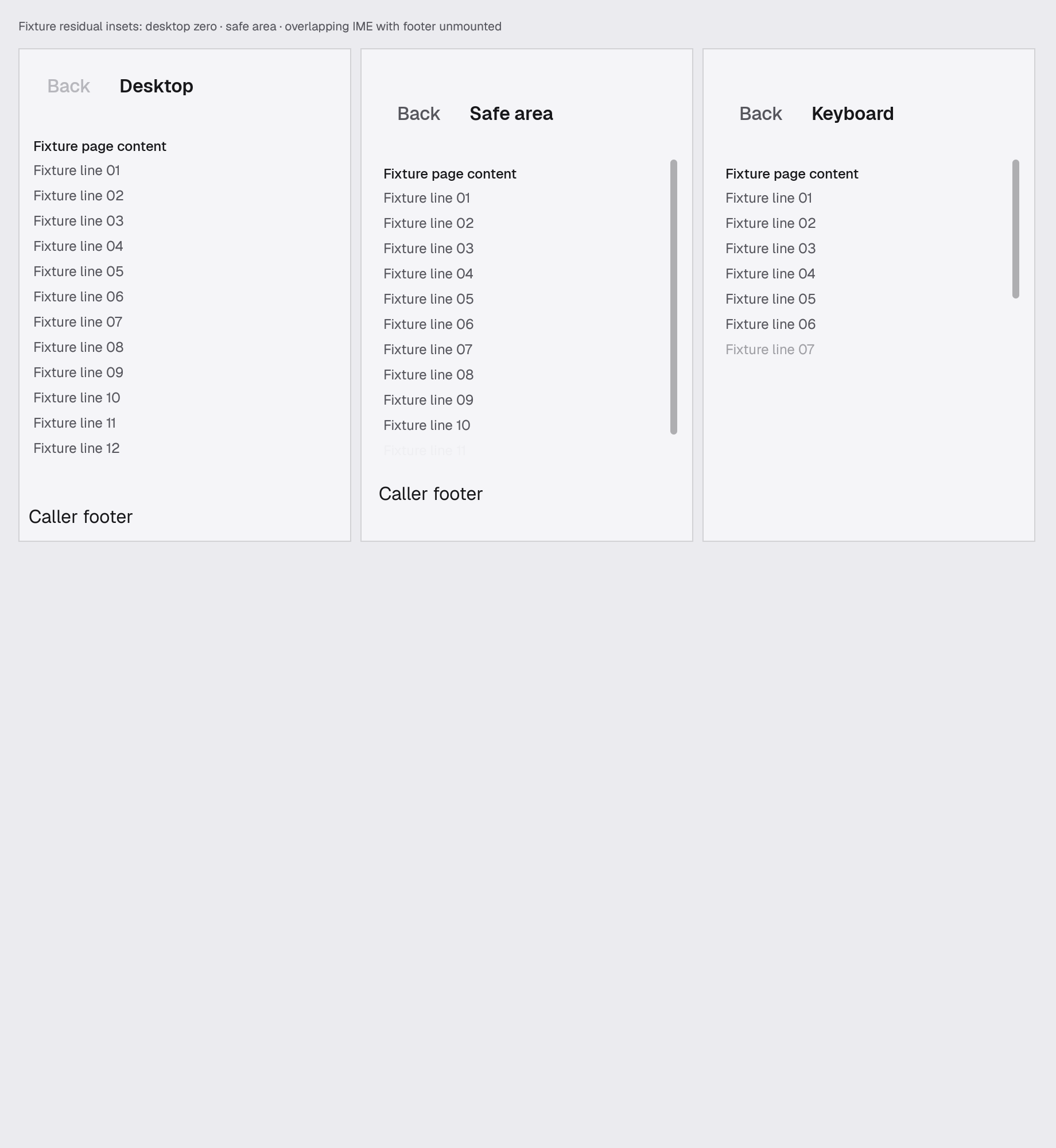

The verified mobile-page scene in studio-dark

Open mobile-page in studio-dark

studio-light

use gpui_kit::layout::PageLayout;

Reviewed in mobile-page.

Also drawn by adaptive-navigation, which arranges components rather than reviewing them.

Construct

new(ident: impl Into<Ident>, body: impl IntoElement) -> Self

Options

Chain onto the value.

insets(insets: WindowInsets) -> Self
header(content: impl IntoElement) -> Self
footer(content: impl IntoElement) -> Self
hide_footer(hidden: bool) -> Self

Example · mobile-page

fn mobile_page(_window: &mut Window, cx: &mut App) -> AnyElement {
    use crate::layout::{AppBar, PageLayout};
    let theme = cx.theme().clone();
    let page = |name: &'static str, keyboard: bool, safe: bool| {
        let id = format!("scene.mobile-page.{name}");
        let mut insets = gpui::WindowInsets::default();
        if safe {
            insets.safe_area.top = px(24.0);
            insets.safe_area.bottom = px(20.0);
            insets.safe_area.left = px(7.0);
            insets.safe_area.right = px(11.0);
        }
        if keyboard {
            insets.ime.bottom = px(140.0);
        }
        div()
            .w(px(290.0))
            .h(px(430.0))
            .border_1()
            .border_color(theme.colors.control_hairline)
            .surface(&theme, Surface::Panel)
            .child(
                PageLayout::new(
                    id.clone(),
                    ScrollArea::new(format!("{id}.scroll")).child(filler(
                        &theme,
                        "Fixture page content",
                        12,
                    )),
                )
                .insets(insets)
                .hide_footer(keyboard)
                .header(
                    AppBar::new(format!("{id}.bar"), name).leading(
                        Button::new(format!("{id}.back"))
                            .label("Back")
                            .ghost()
                            .control_size(ControlSize::Touch)
                            .disabled(!safe)
                            .on_click(|_, _| {}),
                    ),
                )
                .footer(div().p(px(theme.space(Space::Sm))).child("Caller footer")),
            )
    };
    stack(&theme)
        .child(caption(&theme, "Fixture residual insets: desktop zero · safe area · overlapping IME with footer unmounted"))
        .child(row(&theme).items_start().child(page("Desktop", false, false))
            .child(page("Safe area", false, true)).child(page("Keyboard", true, true)))
        .into_any_element()
}

Source: crates/gpui-kit/src/layout/page.rs
