DockTree builder

Draws a recursive DockTopology without owning it.

A builder is RenderOnce. Construct and mount it in one expression.

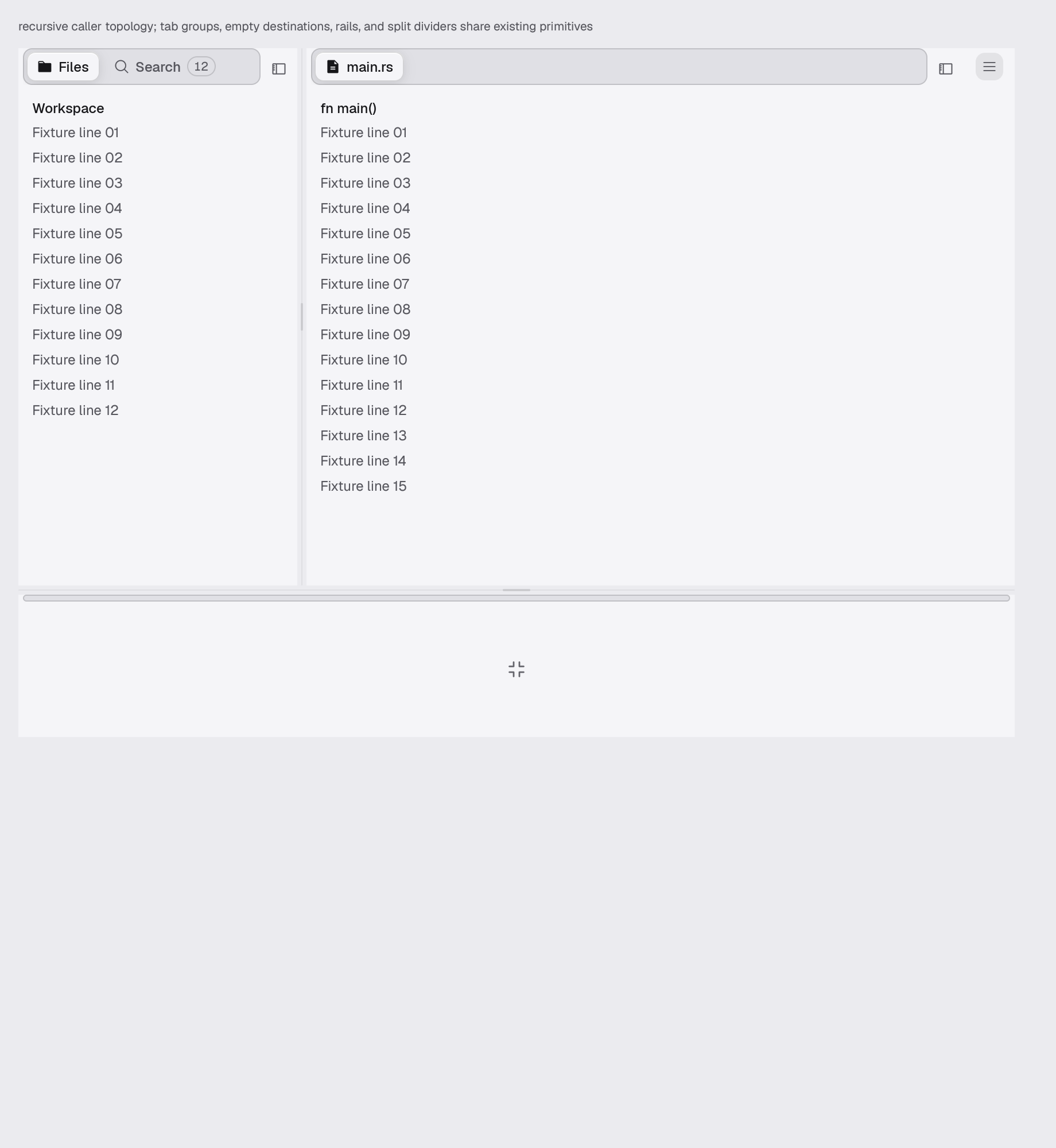

The verified dock-tree scene in studio-dark

use gpui_kit::layout::DockTree;

Reviewed in dock-tree dock-floating.

Construct

new(ident: impl Into<Ident>, topology: DockTopology) -> Self

Options

Chain onto the value.

panel(panel: DockPanel) -> Self
floating(tiles: impl IntoIterator<Item = FloatingDock>) -> Result<Self, DockRecordError>
panels(panels: impl IntoIterator<Item = DockPanel>) -> Self
on_event(handler: impl Fn(DockTreeEvent, &mut Window, &mut App) + 'static) -> Self

Reports

The variants of the event it emits. It never applies the change itself.

FloatingRaised
FloatingChanged
FloatingCancelled
PanelSelected
PanelMoved
PanelSplit
SplitResized
StackCollapsed

Example · dock-tree

fn dock_tree(_window: &mut Window, cx: &mut App) -> AnyElement {
    let theme = cx.theme().clone();
    let topology = DockTopology::vertical(
        "root",
        0.78,
        DockTopology::horizontal(
            "workspace",
            0.28,
            DockTopology::Stack(DockStack::new("source", ["files", "search"]).active("files")),
            DockTopology::horizontal(
                "editing",
                0.9,
                DockTopology::stack("editor", ["main"]),
                DockTopology::Stack(DockStack::new("outline", ["symbols"]).collapsed(true)),
            ),
        ),
        DockTopology::stack("terminal", std::iter::empty::<&str>()),
    );

    stack(&theme)
        .w(px(900.0))
        .child(caption(
            &theme,
            "recursive caller topology; tab groups, empty destinations, rails, and split dividers share existing primitives",
        ))
        .child(
            div()
                .h(px(600.0))
                .surface(&theme, Surface::Panel)
                .radius(&theme, Radius::Card)
                .overflow_hidden()
                .child(
                    DockTree::new("scene.dock-tree", topology)
                        .panels([
                            DockPanel::new("files", "Files")
                                .icon(Icon::Folder)
                                .content(filler(&theme, "Workspace", 12)),
                            DockPanel::new("search", "Search")
                                .icon(Icon::Magnifier)
                                .badge("12"),
                            DockPanel::new("main", "main.rs")
                                .icon(Icon::Document)
                                .content(filler(&theme, "fn main()", 15)),
                            DockPanel::new("symbols", "Outline").icon(Icon::List),
                        ])
                        .on_event(|_, _, _| {}),
                ),
        )
        .into_any_element()
}

Source: crates/gpui-kit/src/layout/dock_tree.rs
