Components / display

ContinuousHeatmap builder

A raw-valued matrix with visible cell values and a numeric color legend. Selection is caller controlled. Invalid coordinates, identities, and readings produce an explicit error; a stale refresh retains verified cells and reason.

A builder is RenderOnce. Construct and mount it in one expression.

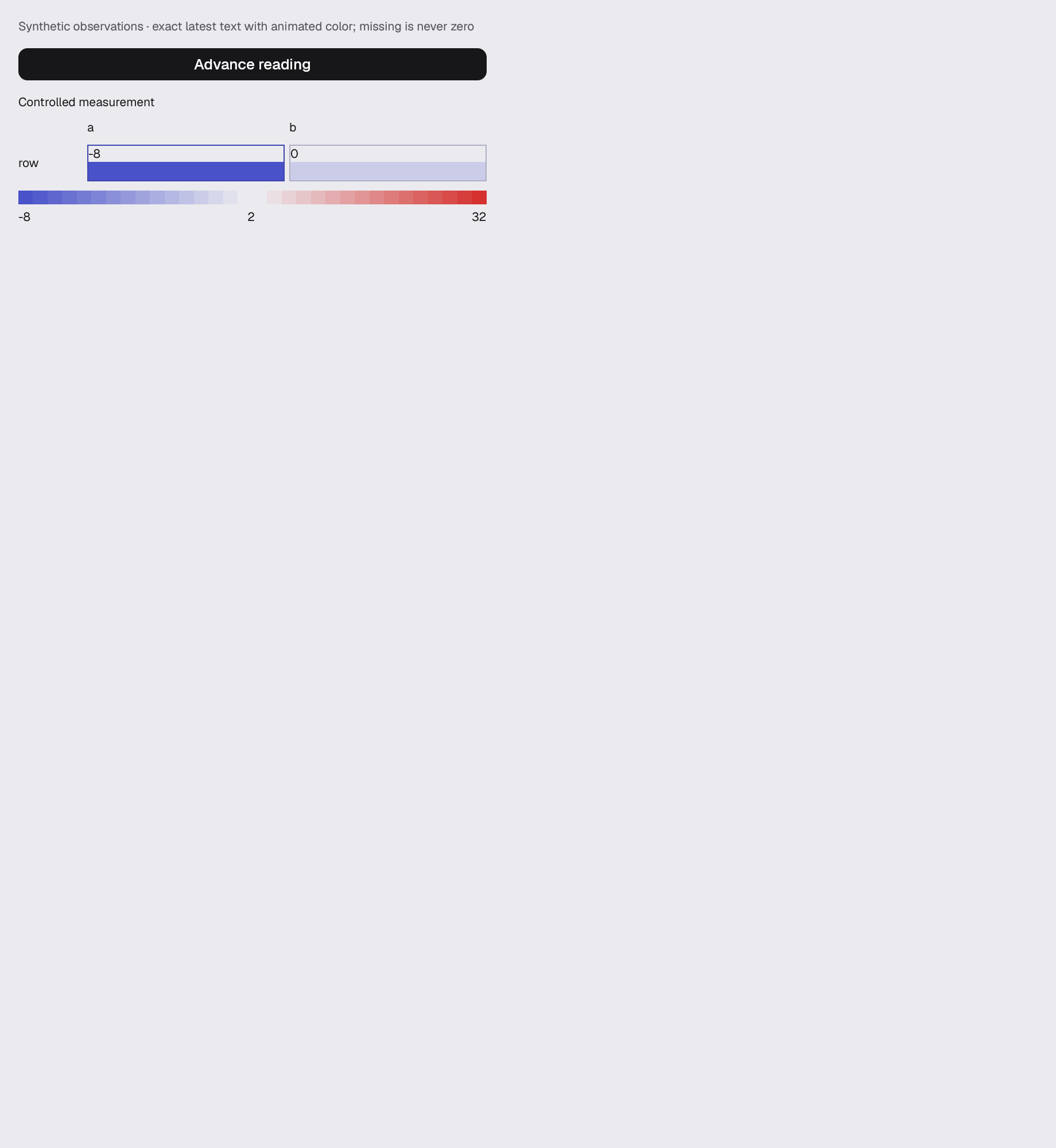

The verified continuous-heatmap-transition scene in studio-dark

Open continuous-heatmap-transition in studio-dark

studio-light

use gpui_kit::display::heatmap::ContinuousHeatmap;

Reviewed in continuous-heatmap-transition heatmap-reordering continuous-heatmap.

Construct

new(ident: impl Into<Ident>, label: impl Into<SharedString>, scale: HeatColorScale, state: super::plot::PlotState<Vec<ContinuousHeatCell>>) -> Self

Options

Chain onto the value.

motion(enabled: bool) -> Self
animate(enabled: bool) -> Self
animation(spec: crate::motion::MotionSpec) -> Self
rows(rows: impl IntoIterator<Item = impl Into<HeatAxis>>) -> Self
columns(columns: impl IntoIterator<Item = impl Into<HeatAxis>>) -> Self
current(id: impl Into<SharedString>) -> Self
on_current(handler: impl Fn(SharedString, &mut Window, &mut App) + 'static) -> Self

Example · continuous-heatmap-transition

fn continuous_heatmap_transition(window: &mut Window, cx: &mut App) -> AnyElement {
    let theme = cx.theme().clone();
    let revision = crate::motion::keyed::slot::<usize>(
        &"scene.heat.transition-state".into(),
        window.window_handle().window_id(),
        cx,
    );
    let value = match *revision.borrow() % 3 {
        0 => Some(-8.0),
        1 => Some(32.0),
        _ => None,
    };
    let next = revision.clone();
    stack(&theme)
        .w(px(440.0))
        .child(caption(
            &theme,
            "Synthetic observations · exact latest text with animated color; missing is never zero",
        ))
        .child(
            Button::new("scene.heat.advance")
                .label("Advance reading")
                .on_click(move |window, _| {
                    *next.borrow_mut() += 1;
                    window.refresh();
                }),
        )
        .child(
            ContinuousHeatmap::new(
                "scene.heat.live",
                "Controlled measurement",
                HeatColorScale::diverging(
                    [-8.0, 2.0, 32.0],
                    theme.colors.accent,
                    theme.colors.canvas,
                    theme.colors.danger,
                )
                .expect("domain"),
                PlotState::Ready(vec![
                    ContinuousHeatCell::new("changing", "row", "a", "Changing reading", value),
                    ContinuousHeatCell::new("zero", "row", "b", "Verified zero", Some(0.0)),
                ]),
            )
            .rows(["row"])
            .columns(["a", "b"])
            .motion(true),
        )
        .into_any_element()
}

Source: crates/gpui-kit/src/display/heatmap.rs
