ScrollEdgeEffect builder

A visual ramp at the edges where floating glass overlaps scrolling content.

A builder is RenderOnce. Construct and mount it in one expression.

The verified scroll-edge-effect scene in studio-dark

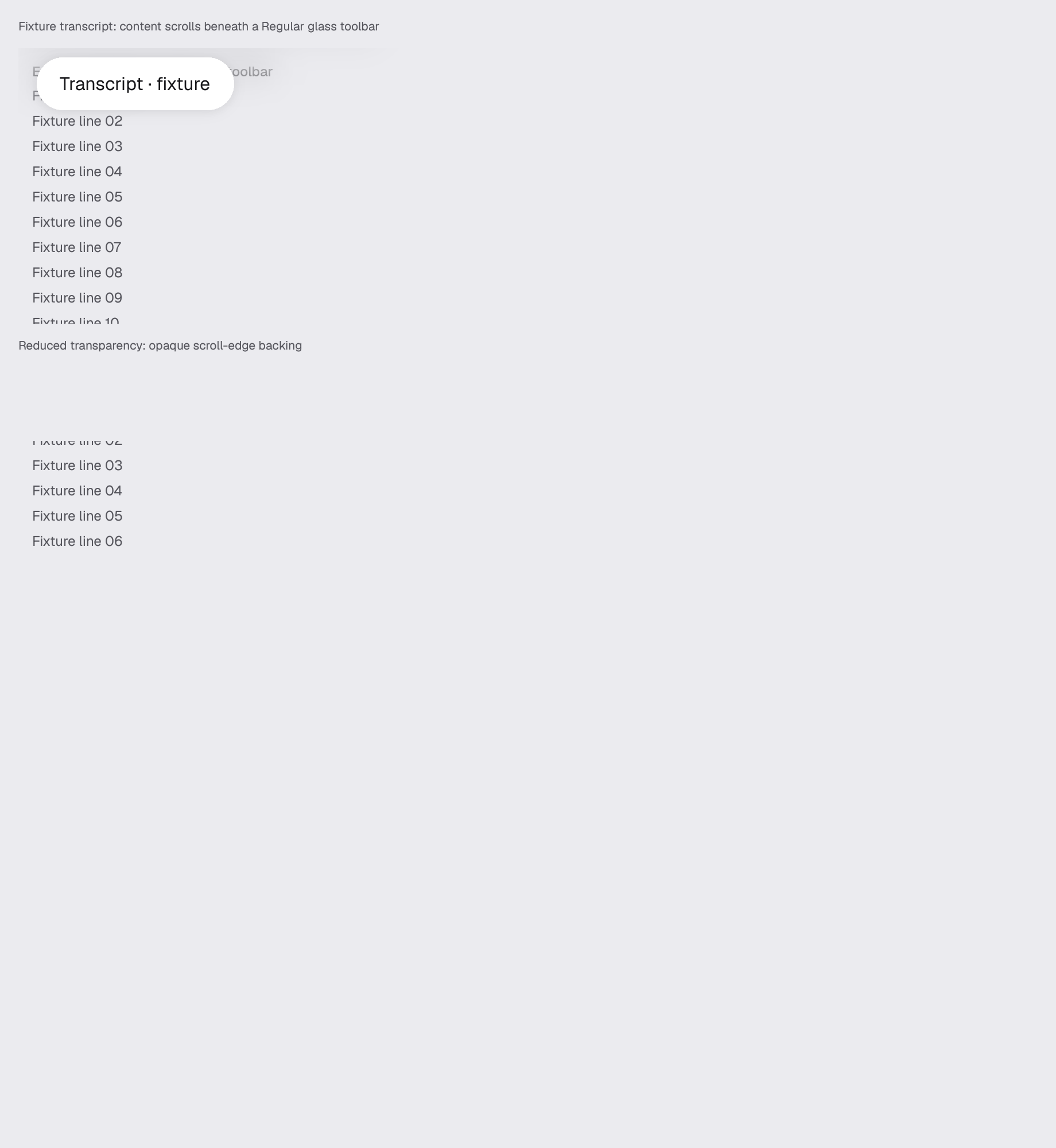

The scroll-edge-effect scene in studio-light

use gpui_kit::layout::ScrollEdgeEffect;

Reviewed in scroll-edge-effect.

Construct

new(ident: impl Into<Ident>) -> Self

Options

Chain onto the value.

edges(edges: FadeEdges) -> Self
top(fade: bool) -> Self
bottom(fade: bool) -> Self
left(fade: bool) -> Self
right(fade: bool) -> Self
kind(kind: ScrollEdgeKind) -> Self
soft() -> Self
hard() -> Self
band(band: f32) -> Self
blur(blur: f32) -> Self
child(child: impl IntoElement) -> Self

Example · scroll-edge-effect

fn scroll_edge_effect(_window: &mut Window, cx: &mut App) -> AnyElement {
    let theme = cx.theme().clone();
    stack(&theme)
        .w(px(620.0))
        .child(caption(
            &theme,
            "Fixture transcript: content scrolls beneath a Regular glass toolbar",
        ))
        .child(
            div()
                .relative()
                .h(px(240.0))
                .overflow_hidden()
                .child(
                    crate::layout::ScrollEdgeEffect::new("scene.scroll-edge.soft")
                        .top(true)
                        .soft()
                        .band(64.0)
                        .child(filler(&theme, "Earlier messages beneath the toolbar", 10)),
                )
                .child(
                    div().absolute().top(px(8.0)).left(px(16.0)).child(
                        Glass::new("scene.scroll-edge.toolbar")
                            .radius(Radius::Pill)
                            .child(
                                div()
                                    .px(px(20.0))
                                    .py(px(10.0))
                                    .child("Transcript · fixture"),
                            ),
                    ),
                ),
        )
        .child(caption(
            &theme,
            "Reduced transparency: opaque scroll-edge backing",
        ))
        .child(
            div().h(px(160.0)).overflow_hidden().child(
                crate::layout::ScrollEdgeEffect::new("scene.scroll-edge.hard")
                    .top(true)
                    .hard()
                    .band(64.0)
                    .child(filler(&theme, "The same transcript", 7)),
            ),
        )
        .into_any_element()
}

Source: crates/gpui-kit/src/layout/scroll_edge.rs
