Components / overlay
GlassGroup builder
Several glass panes fused into one body.
A builder is RenderOnce. Construct and mount it in one expression.
use gpui_kit::overlay::GlassGroup;Reviewed in glass-optics glass-materials.
Construct
new(ident: impl Into<Ident>) -> SelfOptions
Chain onto the value.
surface(surface: Surface) -> Self
radius(radius: Radius) -> Self
blur(blur: f32) -> Self
preset(preset: GlassPreset) -> Self
thickness(thickness: f32) -> Self
refractive_index(refractive_index: f32) -> Self
backdrop_depth(backdrop_depth: f32) -> Self
merge(merge: f32) -> Self
gap(gap: f32) -> Self
pressable(pressable: bool) -> Self
adaptive(adaptive: bool) -> Self
adaptive_appearance(adaptive: bool) -> Self
dimmed(dimmed: bool) -> Self
protect_text_contrast(protect: bool) -> Self
tint(tint: impl Into<Hsla>) -> Self

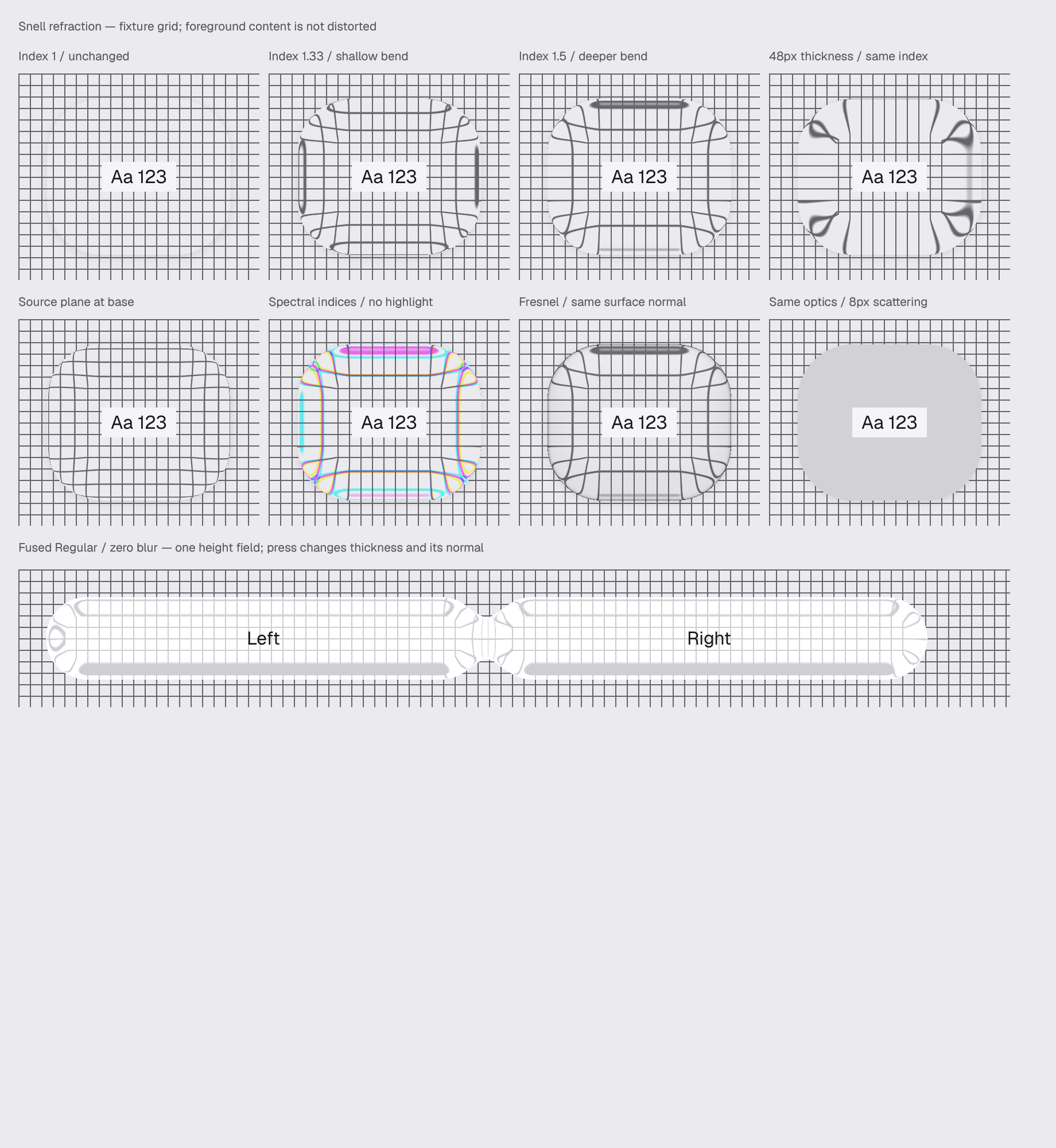

pane(ident: impl Into<Ident>, child: impl IntoElement) -> SelfExample · glass-optics
fn glass_optics(_window: &mut Window, cx: &mut App) -> AnyElement {
let theme = cx.theme().clone();
let specimens = [
("identity", "Index 1 / unchanged", 1., 24., 24., 0., 0.),
("water", "Index 1.33 / shallow bend", 1.33, 24., 24., 0., 0.),
("glass", "Index 1.5 / deeper bend", 1.5, 24., 24., 0., 0.),
(
"thick",
"48px thickness / same index",
1.5,
48.,
24.,
0.,
0.,
),
("contact", "Source plane at base", 1.5, 24., 0., 0., 0.),
(
"dispersion",
"Spectral indices / no highlight",
1.5,
24.,
24.,
0.25,
0.,
),
(
"reflection",
"Fresnel / same surface normal",
1.5,
24.,
24.,
0.,
1.,
),
(
"scatter",
"Same optics / 8px scattering",
1.5,
24.,
24.,
0.,
0.,
),
];
stack(&theme)
.w(px(900.))
.child(caption(
&theme,
"Snell refraction — fixture grid; foreground content is not distorted",
))
.children(specimens.chunks(4).map(|specimens| {
row(&theme).children(specimens.iter().map(
|&(name, title, index, thickness, depth, dispersion, specular)| {
div()
.column()
.gap_token(&theme, Space::Sm)
.w(px(210.))
.child(caption(&theme, title))
.child(
div()
.relative()
.w(px(210.))
.h(px(180.))
.overflow_hidden()
.bg(theme.colors.canvas)
.children((0..18).map(|line| {
div()
.absolute()
.top(px(line as f32 * 10.))
.left_0()
.w_full()
.h(px(1.))
.bg(theme.colors.text_faint)
}))
.children((0..21).map(|line| {
div()
.absolute()
.left(px(line as f32 * 10.))
.top_0()
.h_full()
.w(px(1.))
.bg(theme.colors.text_faint)
}))
.child(
div()
.absolute()
.top(px(22.))
.left(px(25.))
.w(px(160.))
.child(
Glass::new(format!("scene.glass-optics.{name}"))
.preset(GlassPreset::Lens)
.radius_px(48.)
.refraction(1.)
.thickness(thickness)
.refractive_index(index)
.backdrop_depth(depth)
.dispersion(dispersion)
.specular(specular)
.blur(if name == "scatter" { 8. } else { 0. })
.track_pointer(name == "reflection")
.pressable(true)
.child(
div()
.w_full()
.h(px(136.))
.flex()
.items_center()
.justify_center()
.child(
div()
.px_token(&theme, Space::Sm)
.bg(theme.colors.panel)
.child("Aa 123"),
),
),
),
),
)
},
))
}))
.child(caption(
&theme,
"Fused Regular / zero blur — one height field; press changes thickness and its normal",
))
.child(
div()
.relative()
.w(px(864.))
.h(px(120.))
.overflow_hidden()
.children((0..87).map(|line| {
div()
.absolute()
.left(px(line as f32 * 10.))
.top_0()
.h_full()
.w(px(1.))
.bg(theme.colors.text_faint)
}))
.children((0..12).map(|line| {
div()
.absolute()
.top(px(line as f32 * 10.))
.left_0()
.w_full()
.h(px(1.))
.bg(theme.colors.text_faint)
}))
.child(
div().absolute().left(px(24.)).top(px(24.)).child(
GlassGroup::new("scene.glass-optics.fused")
.preset(GlassPreset::Liquid)
.blur(0.)
.thickness(48.)
.refractive_index(1.5)
.backdrop_depth(24.)
.radius(Radius::Pill)
.gap(8.)
.merge(32.)
.pressable(true)
.pane(
"scene.glass-optics.fused.left",
div()
.w(px(380.))
.h(px(72.))
.flex()
.items_center()
.justify_center()
.child("Left"),
)
.pane(
"scene.glass-optics.fused.right",
div()
.w(px(380.))
.h(px(72.))
.flex()
.items_center()
.justify_center()
.child("Right"),
),
),
),
)
.into_any_element()
}
