AudioWaveform builder

A measured waveform the host already sampled.

A builder is RenderOnce. Construct and mount it in one expression.

The verified audio-waveform scene in studio-dark

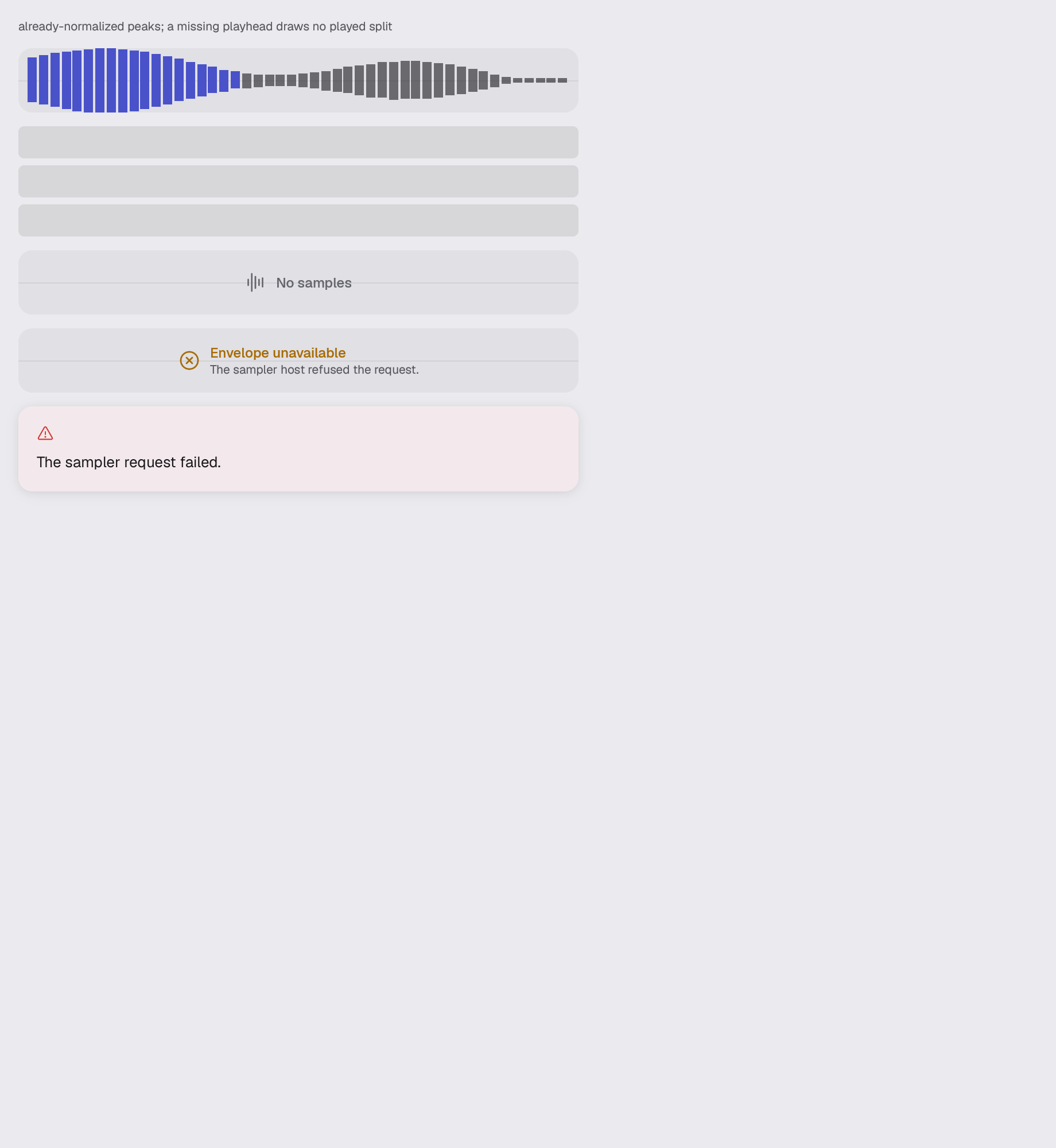

The audio-waveform scene in studio-light

use gpui_kit::media::AudioWaveform;

Reviewed in audio-waveform.

Construct

new(ident: impl Into<Ident>) -> Self

Options

Chain onto the value.

peaks(peaks: impl IntoIterator<Item = f32>) -> Self
playhead(fraction: f32) -> Self
state(state: AudioWaveformState) -> Self

Example · audio-waveform

fn audio_waveform(_window: &mut Window, cx: &mut App) -> AnyElement {
    let theme = cx.theme().clone();
    stack(&theme)
        .w(px(520.0))
        .child(caption(
            &theme,
            "already-normalized peaks; a missing playhead draws no played split",
        ))
        .child(
            AudioWaveform::new("scene.waveform.ready")
                .peaks(scene_peaks(48))
                .playhead(0.38),
        )
        .child(AudioWaveform::new("scene.waveform.loading").state(AudioWaveformState::Loading))
        .child(AudioWaveform::new("scene.waveform.empty").state(AudioWaveformState::Empty))
        .child(AudioWaveform::new("scene.waveform.unavailable").state(
            AudioWaveformState::Unavailable("The sampler host refused the request.".into()),
        ))
        .child(
            AudioWaveform::new("scene.waveform.error").state(AudioWaveformState::Error(
                "The sampler request failed.".into(),
            )),
        )
        .into_any_element()
}

Source: crates/gpui-kit/src/media/waveform.rs
